GENERAL PACKER

PRODUCT

GP-M3000

High-Performance Automatic Bag feeding filling-sealing Machine
Significant improvements in "Operability, Cleaning, Safety, Stability".

GP-M3000UST

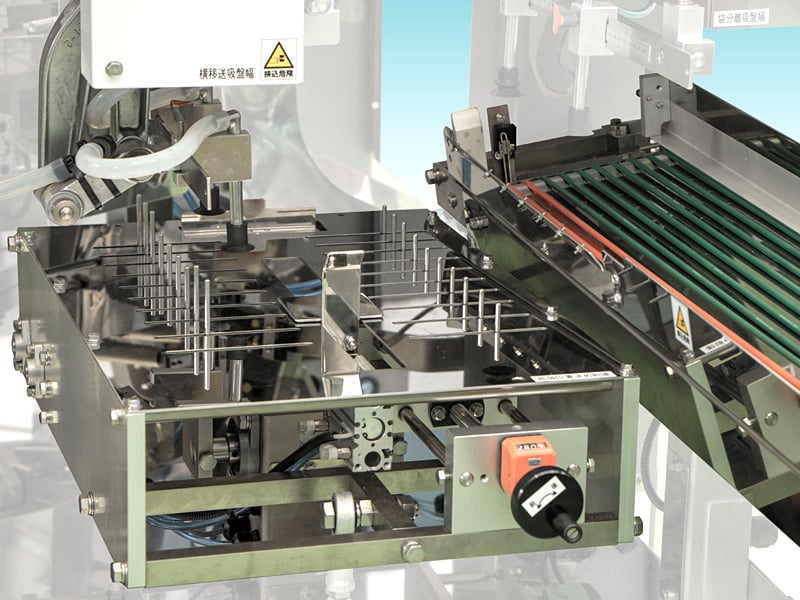

SPS, All new "SPS" Bag Feeding Unit
※SPS: Side Step Positioning System
  • Designed to a Higher Specification with "Mechatronics"
    Easy to use and high efficiency!!

  • Remote maintenance function added to Mechatronics Technology

    • Mechatronics Bag Feeding
    • Mechatronic vibration
    • Mechatronics seal
    • Remote maintenance
  1. Allows for easier, quick loading of bags into the conveyor.

    Dramatically reduces bag transfer failures.

  2. The surface deck area is completely bolt-less feature.

    Significantly improved Hygienic design for cleaning.

  3. A true 90 seconds product change-over design feature.

    Decreased 10:1 change-over time when compared with other models requiring 30 minutes.

  4. Automated, Self-Adjusting Bag Tapping Mechanism Feature.

    Three tapping factors : Bottom Tapping time, Frequency and Strength are adjusted automatically.

  5. Automated Sealing Time, Pressure and Temperature Control.

    Correspond to Traceability.

  6. In-Line Bag IJO Code-Printing Capabilities Surface Are has Doubled.

    Able to handle various types of Bag Design.

LINEUP

GY The bag feed system is to automatically supply bags one by one from the bag feeder previously set with several hundreds of bags.
UR Standard type corresponding to back sealed three-side-seal bag, four side-seal bag, or four-side bag with fastener.
USR Correspond to standing pouch. Also applicable to back sealed three-side-seal bag, four-side-seal bag, or four-side-seal bag with fastener.
UST Almighty highest-end model capable of handling standing pouches with fasteners.

Main applications

  • Powder
  • snack
  • pet food
  • other solid matter

SPECIFICATIONS

Packaging capacity 15 to 65 bags per minute (depending on the product)
Bag dimensions Width: 100 to 230mm,
Length: 130 to 380mm
Filling quantity Maximum: 1 kg (optional : 2kg)
Outline dimensions
(Reference)
Width: 1491 mm,
Length: 3250 mm (UST)
